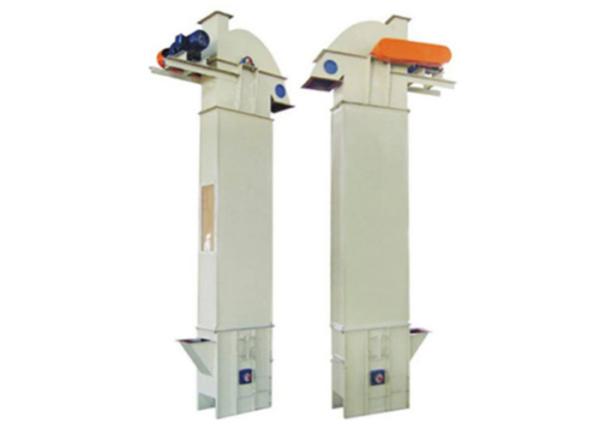

Small 192T Rice Mill 8T Bean Vertical Bucket Elevator

Manufacturer DTG26/18 8T vertical bean bucket elevator for 192T rice processing factory

Quick Detail:

Manufacturer DTG26/18 8T vertical bean bucket elevator for 192T rice processing factory.

bucket elevators are used to lift vertically various of granular feedstock in grain and oil, food, feedstuff industry. They are the new generation elevators designed on the basis of overseas advanced techniques.

High quality steel plates;
Plates adopt laser cutting machine;
Bending and welding adopt numerical control bender and argon arc welding;
The seal performance is good and may effectively reduce the leakage of dust;
The reducer selects GR gear reducer;
The bearing adopts TR series, outer sphere ball bearing;
Winnowing pan adopts macromolecule polyethylene with good abrasive resistance;
All joints adopt galvanized bolts;
Adopting centrifuge discharge to enhance the efficiency;

Features & Advantages of DTG type Bucket elevator for paddy

1. The TH type bucket elevator conveyor is large, and the type with the same size and width is nearly twice as large as the HL type.
2. TH type bucket elevator adopts the assembly type sprocket.The wheel body and rim are connected with high strength bolts.
3. The lower part of the TH type bucket elevator adopts a heavy-hammer lever tensioning device, which can realize automatic tensioning.
4. TH type bucket elevator is a low-alloy high-strength ring chain with high tensile strength and abrasion resistance after proper heat treatment, with long service life.

Description:

1.Using CNC equipment meticulous manufacturing, good sealing performance;

2.Compact structure , small cross-sectional dimensions, saving occupied area;

3.With gear box and sprocket wheel(or V type belt),two stage transmission, stable, reliable, low noise, convenient to installation and repair;

4.With traction belt of high strength, strong traction force, low elongation, durability and reliability;

5.With screw type tensioning device; convenient adjustment.

Application:

Agriculture Food Grade Heavy Duty Rice Mill Bucket Elevator used for lifting powder, granular materials and small block and grinding of small materials vertically, such as: coal, cement, stones, sand, clay, ore and so on. or other industries of dry mortar for construction, chemistry and foodstuff.

Specification:

Competitive Advantage:

Heavy Instrument Reliable Operation Bucket Elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators, dustpan, dustpanbelt and machine base.The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.

Factory overiew:

Honor certificate:

Production site:

Product family:

Rice plant project:

Package & delivery:

Rice Mill Bucket Elevator

Bean Vertical Bucket Elevator

Small Bucket Elevator

Small 192T Rice Mill 8T Bean Vertical Bucket Elevator Images
